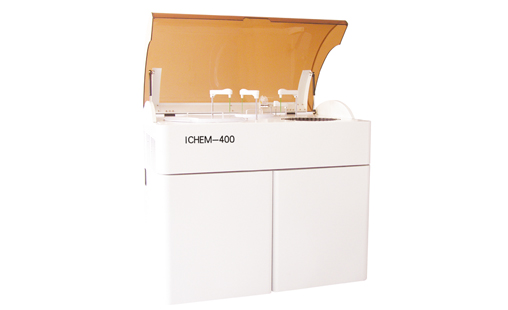

ICHEM - 400

ICHEM-400 is a floor standing, discrete and random access clinical chemistry analyzer with a throughput of 400 tests per hour.
Brochure Download


ICHEM-400 applies to clinical analysis using colorimetric method and turbidimetric method, including routine tests of liver functions, blood glucose, blood lipid, kidney functions and myocardium zymogram levels. In addition, this product can be used to measure C3, C4, IgG, IgA, IgM, CRP, ASO levels precisely and quickly, and can meet nearly all the requirements of biochemical tests.


Product Advantages


Accurate Multifunctional Sampling Needle
 Mirror-polished and self-cleaning inwall and outwall to avoid cross-contamination
 Specific sampling needle
 Integrated liquid level sensor with high sensitivity for the real-time feedback of the sample residual amount
 Firing pin protection
 Automatic adjustment of the sampling needle depth

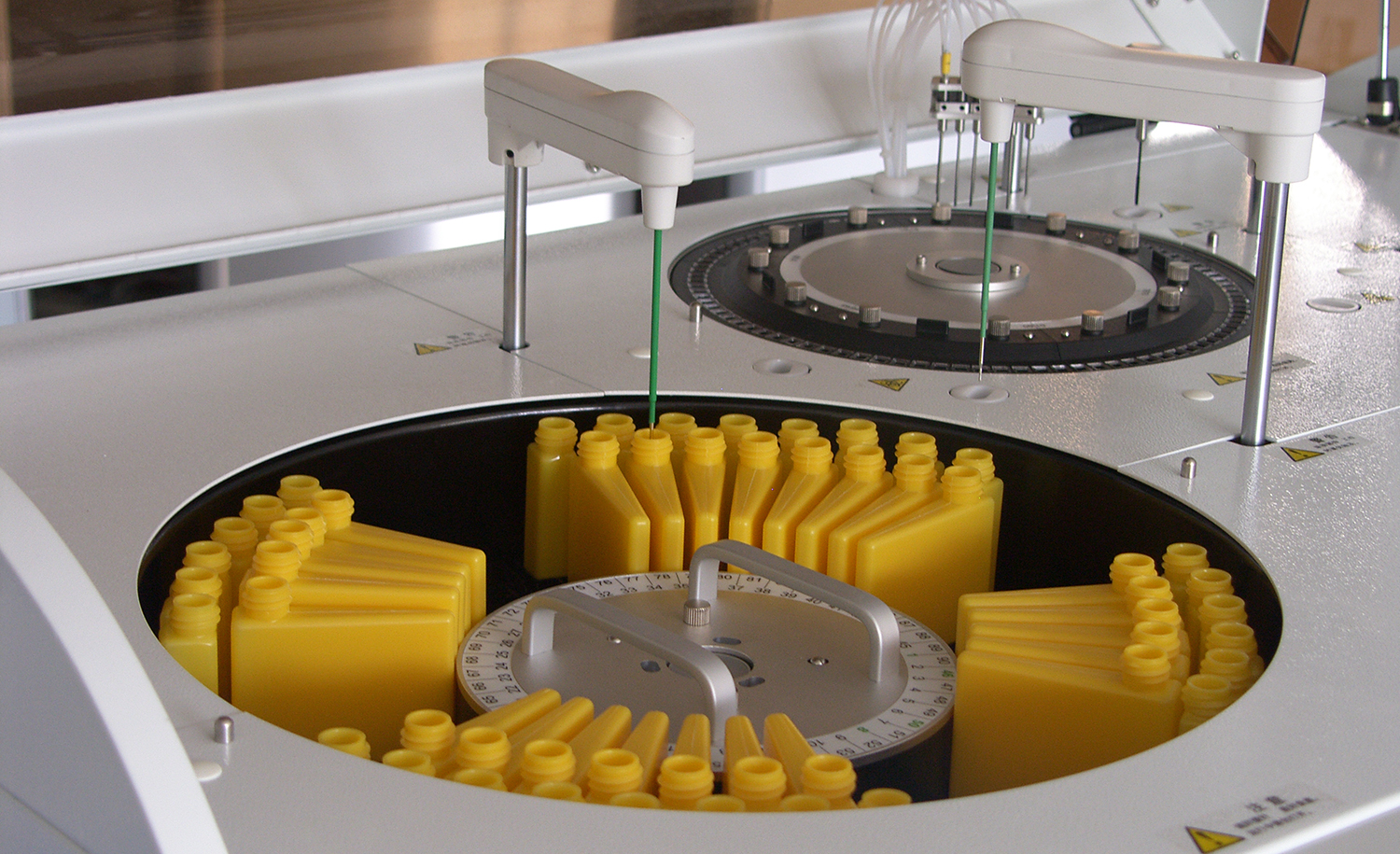

Reagent/sample Tray with Compatibility
 90 reagent positions
 120 sample positions, compatible with a variety of blood tubes and micro cups
 Reagent tray with a built-in Peltier cooling system
 Reagent/Sample barcode scanning (optional)

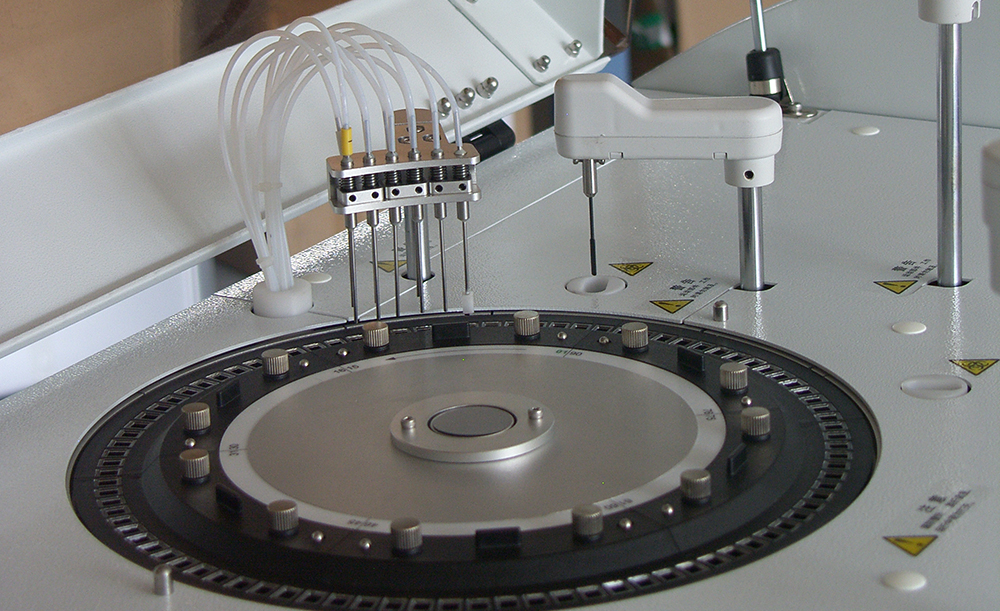

High Efficiency Thermostatic Reaction Tray
 90 recycled colorimetric cups, reusable after automatic cleaning
 Minimum reaction volume of 150 μl
 Precise temperature control (37 ± 0.1 ℃) and maintenance-free system


Excellent Mixing Design
 Teflon coating of the mixing needle guarantees no residue and low potential of cross-contamination.
 Standard mixing procedure with excellent mixing effect


Smart Cleaning System
 6-step and 2 times repeated cleaning process of the sampling needle guarantees the accurate results and reliable diagnosis.


Powerful Software Functions
 User-friendly software interface for easy operation.
 Screen the test items and alarm automatically when reagents or standards are used up.
 Linear, nonlinear calibration and multipoint calibration
 Multifunctional application for quality control and the printing function of quality control charts
 Display the status of operation, reagent tray, sample tray and reaction tray and update the residual amount in real time
 Automatic check of the status of cuvettes and filter out the defective ones.

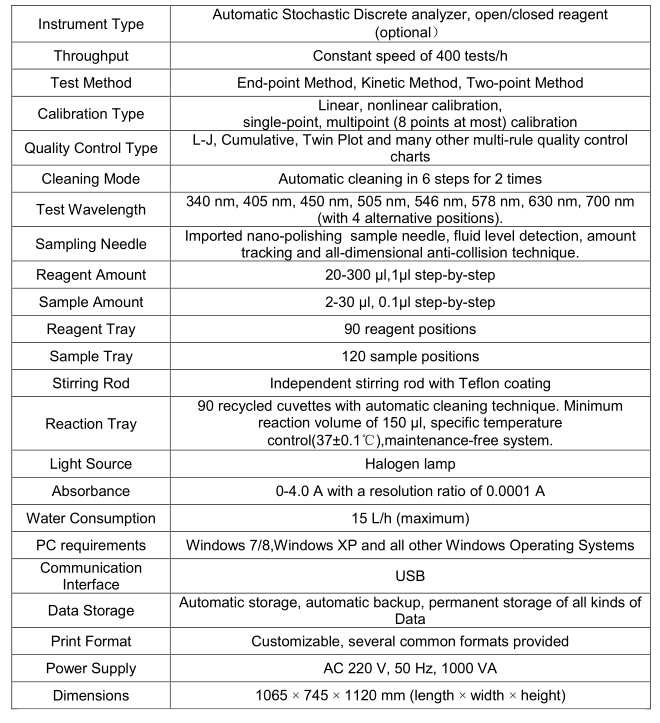

Technical Specifications
